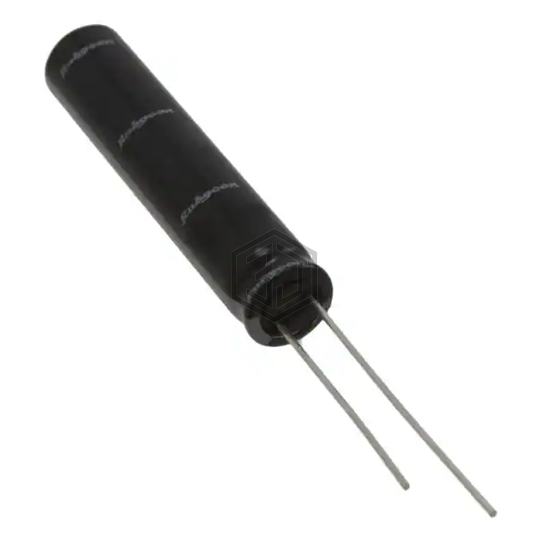

CAP ALUM 56UF 20% 100V RADIAL
100TXW56MEFC6.3X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 56UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 635 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.27 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225969569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 500V SNAP | 72% | View |
| UCY2E560MHD1TO | Nichicon | CAP ALUM 56UF 20% 250V RADIAL | 69% | View |
| EKHE401ELL560MJ45S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 65% | View |
| 420HXW56MEFR10X40 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 62% | View |
| 450HXW56MEFR16X20 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 61% | View |
| UPW1V560MDD | Nichicon | CAP ALUM 56UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for 100TXW56MEFC6.3X40 and get a quote within 24 hours.
