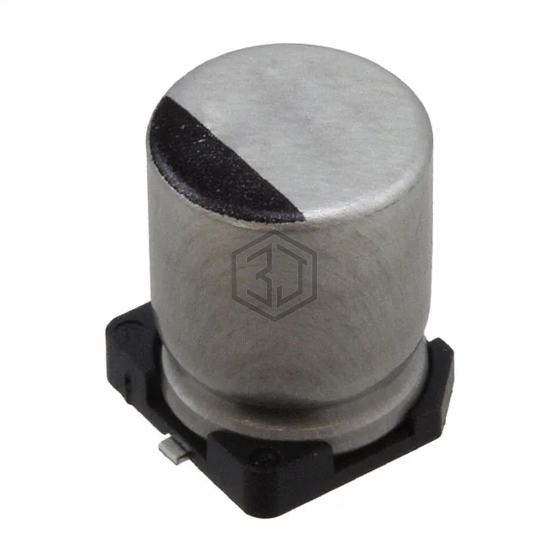

CAP ALUM 4.7UF 20% 100V SMD
100SGV4.7M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4.7UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 4,840
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
100SGV4.7M8X10.5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215097901E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 100V SMD | 100% | View |
| EDH475M025S9BAA | KEMET | CAP ALUM 4.7UF 20% 25V SMD | 56% | View |
| 35TZV4.7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 56% | View |
| AVEZ475M25B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 25V SMD | 56% | View |
| UUL1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 56% | View |
| 16NSKV4.7M4X5.5 | Rubycon | CAP ALUM 4.7UF 20% 16V SMD | 56% | View |
Submit your RFQ for 100SGV4.7M8X10.5 and get a quote within 24 hours.
