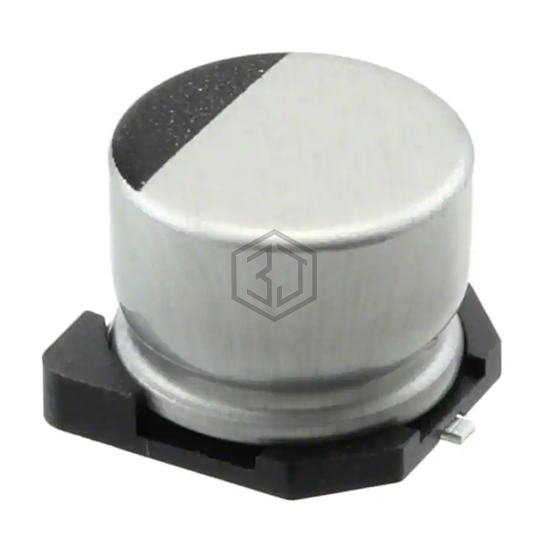

CAP ALUM 220UF 20% 100V SMD
100SGV220M18X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 3,539
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 440 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1J221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 63V SMD | 71% | View |
| VZT221M1HTR-0810S | Surge | CAP ALUM 50V POLAR | 71% | View |
| EEE-FK1E221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 68% | View |
| 25SGV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 25V SMD | 64% | View |
| UUQ1E221MCL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 59% | View |
| UUD1V221MNQ1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 56% | View |
