CAP ALUM 220UF 20% 100V SMD

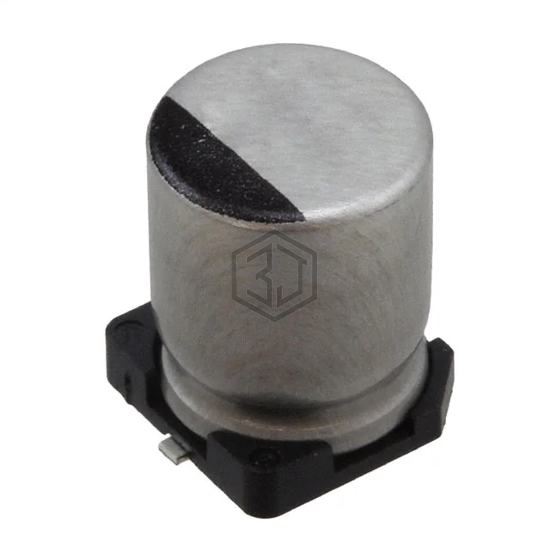

100SGV220M16X21.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 1,151
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 440 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35TGV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 62% | View |
| UUA1E221MNL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 61% | View |
| EMHL350ARA221MHA0G | United Chemi-Con | CAP ALUM 220UF 20% 35V SMD | 56% | View |
| EEE-TC1C221V | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 55% | View |
| EEE-TC1E221UV | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 55% | View |
| EXV227M016A9MAA | KEMET | CAP ALUM 220UF 20% 16V SMD | 54% | View |
Submit your RFQ for 100SGV220M16X21.5 and get a quote within 24 hours.
