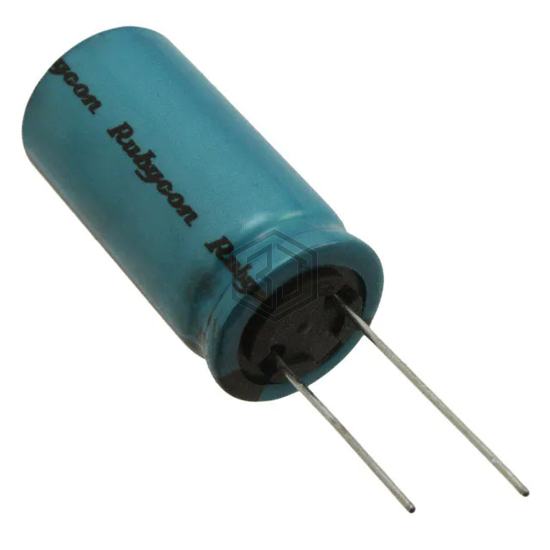

CAP ALUM 470UF 20% 100V RADIAL
100RX30470M18X31.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,635
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | 92 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100RX30470MGC18X31.5 | Rubycon | CAP ALUM 470UF 20% 100V RADIAL | 100% | View |
| UBY1K471MHL1TN | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 84% | View |
| EGPD101ELL471ML30H | United Chemi-Con | CAP ALUM 470UF 20% 100V RADIAL | 73% | View |
| MAL216031471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 66% | View |
| 50RX30470MZO12.5X25 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 63% | View |
| EEU-TP1E471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 57% | View |
