CAP ALUM 560UF 20% 100V SNAP

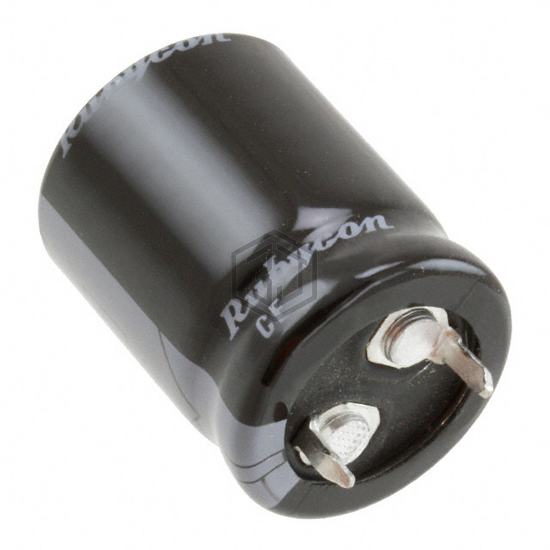

100MXC560MEFCSN20X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 8,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0925 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECO-S2AA561BA | Panasonic Electronic Components | CAP ALUM 560UF 20% 100V SNAP | 93% | View |
| UPJ1E561MHD6TO | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 76% | View |
| EEU-FC1E561S | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL | 75% | View |
| ELXV350ETE561MK20S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 66% | View |
| B43508F2567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 54% | View |
| B43508E2567M7 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 53% | View |
Submit your RFQ for 100MXC560MEFCSN20X25 and get a quote within 24 hours.
