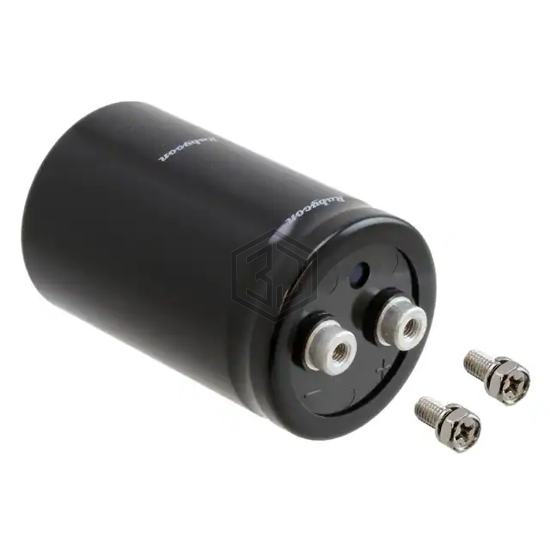

CAP ALUM 2700UF 20% 100V SCREW
100LSW2700MEFC36X63 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2700UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.74 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 2.598" (66.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 101C272U100AB2B | Cornell Dubilier Knowles | CAP ALUM 100V POLAR | 100% | View |
| MLS272M075EB0A | Cornell Dubilier Electronics (CDE) | ALUM FLATPACK 2700UF 75V 20% | 82% | View |
| E32D101HPN272MA54U | United Chemi-Con | CAP ALUM 2700UF 20% 100V SCREW | 69% | View |
| E32D101HPN272MA54M | United Chemi-Con | CAP ALUM 2700UF 20% 100V SCREW | 69% | View |
| 101C282U063AK2A | Cornell Dubilier Knowles | CAP ALUM 63V POLAR | 67% | View |
| E32D161HPN272MA79U | United Chemi-Con | CAP ALUM 2700UF 20% 160V SCREW | 55% | View |
Submit your RFQ for 100LSW2700MEFC36X63 and get a quote within 24 hours.
