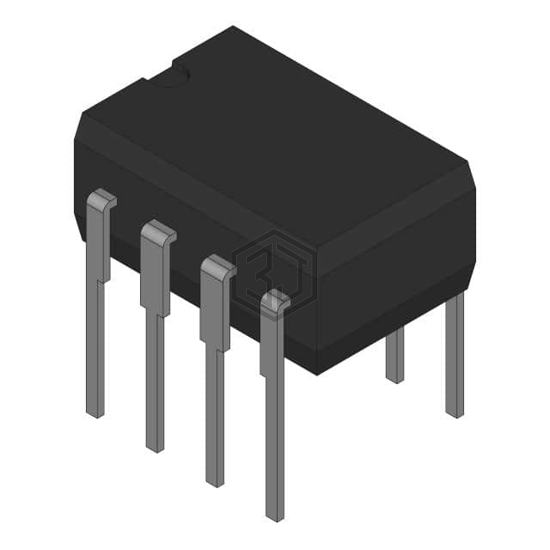

IC VOLTAGE FEEDBACK 2 CIRC 8CDIP
CLC428A/BPA is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Rochester Electronics, LLC. IC VOLTAGE FEEDBACK 2 CIRC 8CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 8-CDIP (0.300", 7.62mm), current - supply 11mA (x2 Channels).
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 500V/µs |
| Gain Bandwidth Product | 135 MHz |
| -3db Bandwidth | 160 MHz |
| Current - Input Bias | 1.5 µA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 11mA (x2 Channels) |
| Current - Output / Channel | 70 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 7 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CDIP |
Submit your RFQ for CLC428A/BPA and get a quote within 24 hours.
