PRIM SWITCH PSUPPLY 2 PHASE 17W

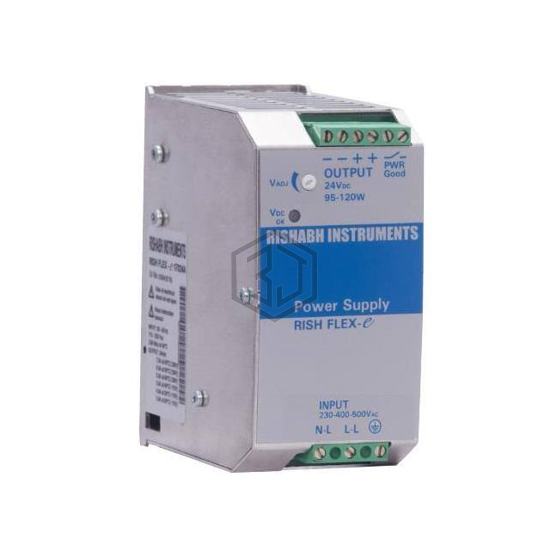

RISH FLEX-E 9024B is a Industrial, DIN Rail Power Supplies manufactured by Rishabh Instruments. PRIM SWITCH PSUPPLY 2 PHASE 17W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 5A, size / dimension 4.13" L x 2.17" W x 4.33" H (105.0mm x 55.0mm x 110.0mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 187 ~ 550 VAC |
| DC Voltage - Input (Min) | 264V |
| DC Voltage - Input (Max) | 780V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | - |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable |
| Size / Dimension | 4.13" L x 2.17" W x 4.33" H (105.0mm x 55.0mm x 110.0mm) |
| Approval Agency | CE |
| Standard Number | 60950-1 |
Submit your RFQ for RISH FLEX-E 9024B and get a quote within 24 hours.
