POWER SUPPLY 1 PHASE 120 TO 180W

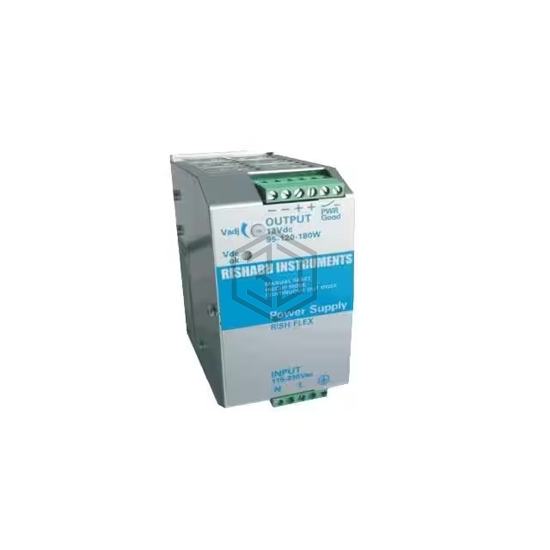

RISH FLEX 17012A is a Industrial, DIN Rail Power Supplies manufactured by Rishabh Instruments. POWER SUPPLY 1 PHASE 120 TO 180W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 14A, size / dimension 4.13" L x 2.17" W x 4.33" H (105.0mm x 55.0mm x 110.0mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 135 VAC, 180 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 14A |
| Power (Watts) | - |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 4.13" L x 2.17" W x 4.33" H (105.0mm x 55.0mm x 110.0mm) |
| Approval Agency | CE |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for RISH FLEX 17012A and get a quote within 24 hours.
