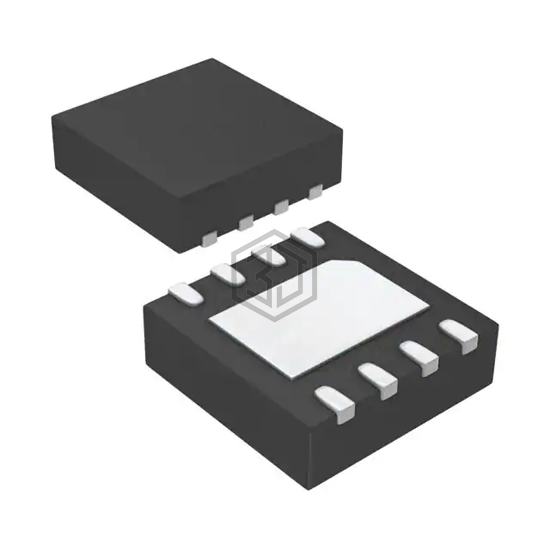

IC REG LIN ADJ 2A WDFN-8
RTQ2520GQW is a PMIC - Voltage Regulators - Linear manufactured by Richtek USA Inc.. IC REG LIN ADJ 2A WDFN-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-WFDFN Exposed Pad, current - supply (max) 5.5 mA.
In Stock: 9,469
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.125V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 4 mA |
| Current - Supply (Max) | 5.5 mA |
| PSRR | 60dB ~ 38dB (10kHz ~ 500kHz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Current, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WDFN-EL (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RTQ2513TGQW | Richtek USA Inc. | IC REG LIN ADJ 3A WQFN-20 | 92% | View |
| RTQ2532WGQV(2) | Richtek USA Inc. | IC REG LIN ADJ 2A VQFN-20 | 86% | View |
| RTQ2533WGQV(2) | Richtek USA Inc. | IC REG LINEAR POS ADJ 3A 20VQFN | 79% | View |
| ISL80510IRAJZ-T7A | Renesas Electronics America Inc | IC REG LINEAR POS ADJ 1A 8DFN | 70% | View |
| TPS7A5301RPSR | Texas Instruments | IC REG LINEAR POS ADJ 4A 12VQFN | 70% | View |
| ISL80510IRAJZ-T | Renesas Electronics America Inc | IC REG LINEAR POS ADJ 1A 8DFN | 70% | View |
Submit your RFQ for RTQ2520GQW and get a quote within 24 hours.
