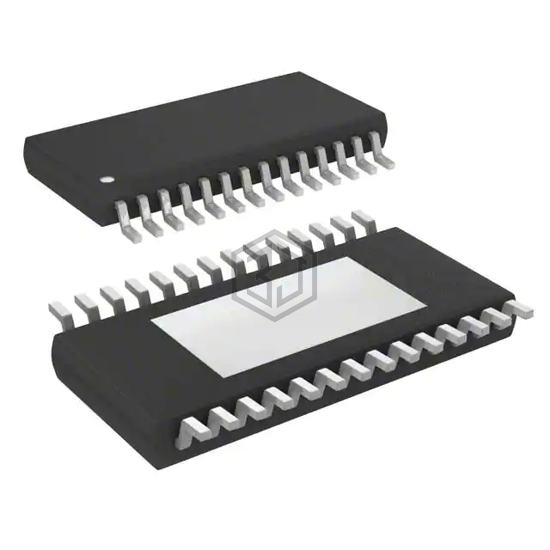

IC LED DRVR RGLTR PWM 28TSSOP
RT8566GCP is a PMIC - LED Drivers manufactured by Richtek USA Inc.. IC LED DRVR RGLTR PWM 28TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 45V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 4,052
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 8 |
| Voltage - Supply (Min) | 9V |
| Voltage - Supply (Max) | 28V |
| Voltage - Output | 45V |
| Current - Output / Channel | 120mA |
| Frequency | 100kHz ~ 1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT8577ZQW | Richtek USA Inc. | IC LED DRIVER RGLTR PWM 20WQFN | 94% | View |
| L99LD21Q6TR | STMicroelectronics | IC LED DRVR RGLTR PWM 1.5A 40QFN | 66% | View |
| TPS92513DGQT | Texas Instruments | IC LED DRVR RGLTR PWM 10HVSSOP | 65% | View |
| TPS92513DGQR | Texas Instruments | IC LED DRVR RGLTR PWM 10HVSSOP | 65% | View |
| LT3954EUHE#PBF | Analog Devices Inc. | IC LED DRIVER RGLTR PWM 5A 36QFN | 55% | View |
| LT3955EUHE#TRPBF | Analog Devices Inc. | IC LED DRVR RGLTR PWM 3.5A 36QFN | 51% | View |
Submit your RFQ for RT8566GCP and get a quote within 24 hours.
