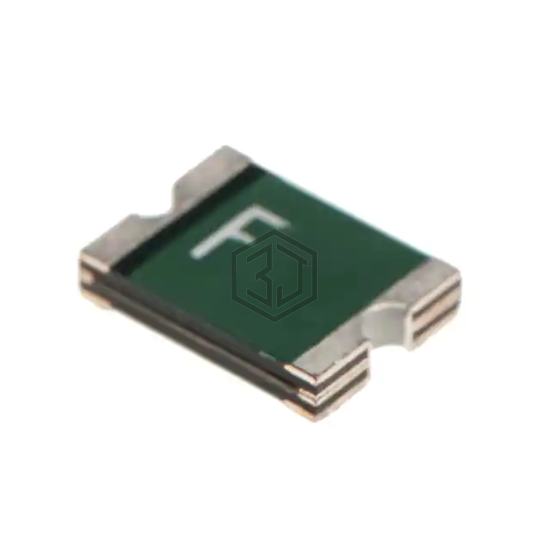

RESETTABLE FUSE - SMD, 1812 SIZE
FSMD260R is a PTC Resettable Fuses manufactured by RFE/Fuzetec. RESETTABLE FUSE - SMD, 1812 SIZE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1812 (4532 Metric), Concave, current - max 100 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Voltage - Max | 8V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 2.6 A |
| Current - Trip (It) | 5 A |
| Time to Trip | 2.5 s |
| Resistance - Initial (Ri) (Min) | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 47 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.047" (1.20mm) |
| Lead Spacing | - |
