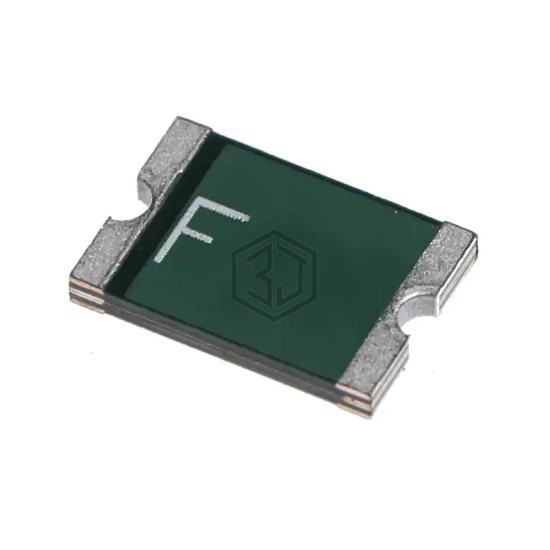

RESETTABLE FUSE - SMD, 2920 SIZE
FSMD075-2920-R is a PTC Resettable Fuses manufactured by RFE/Fuzetec. RESETTABLE FUSE - SMD, 2920 SIZE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2920 (7351 Metric), Concave, current - max 100 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Voltage - Max | 33V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 1.5 A |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 180 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.045" (1.15mm) |
| Lead Spacing | - |
Submit your RFQ for FSMD075-2920-R and get a quote within 24 hours.
