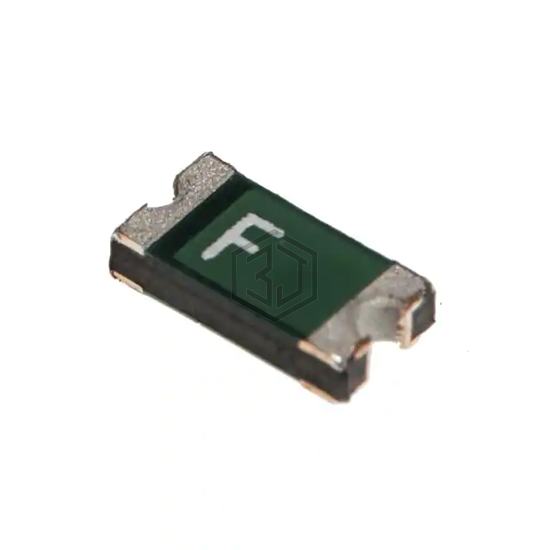

RESETTABLE FUSE - SMD, 1206 SIZE
FSMD025-1206-R is a PTC Resettable Fuses manufactured by RFE/Fuzetec. RESETTABLE FUSE - SMD, 1206 SIZE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1206 (3216 Metric), Concave, current - max 100 A.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Trip (It) | 500 mA |
| Time to Trip | 80 ms |
| Resistance - Initial (Ri) (Min) | 550 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.3 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
Submit your RFQ for FSMD025-1206-R and get a quote within 24 hours.
