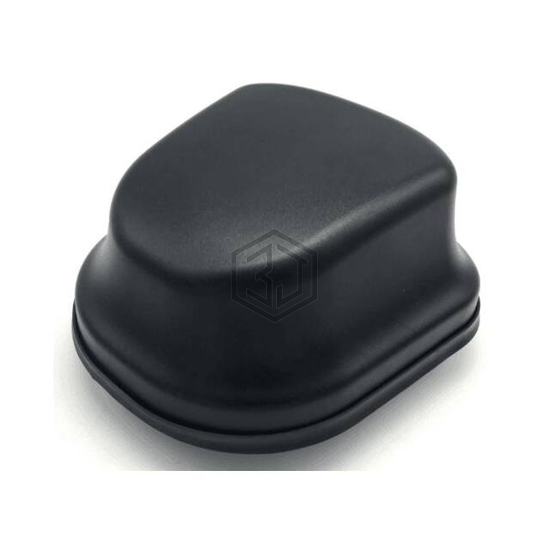

3G 'GSM LTE MIMO GPS WIFI PUCK M
ANT-GGWLTEPUKS-SMA is a RF Antennas manufactured by RF Solutions. 3G 'GSM LTE MIMO GPS WIFI PUCK M. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.561GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.69GHz ~ 3.6GHz, 4.9GHz ~ 5.825GHz.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.5855GHz, 2.2GHz, 2.44175GHz, 3.145GHz, 5.3625GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.561GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.69GHz ~ 3.6GHz, 4.9GHz ~ 5.825GHz |
| Antenna Type | Puck |
| Number of Bands | 6 |
| VSWR | 2, 2.5, 3 |
| Return Loss | - |
| Gain | 4dBi, 28dB, 4dBi, 4dBi, 4dBi, 4dBi |
| Power - Max | - |
| Features | Cable - 3m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.346" (85.00mm) |
| Applications | 4G, GSM, GPS, LTE, Wi-Fi |
Submit your RFQ for ANT-GGWLTEPUKS-SMA and get a quote within 24 hours.
