Renesas Electronics America Inc

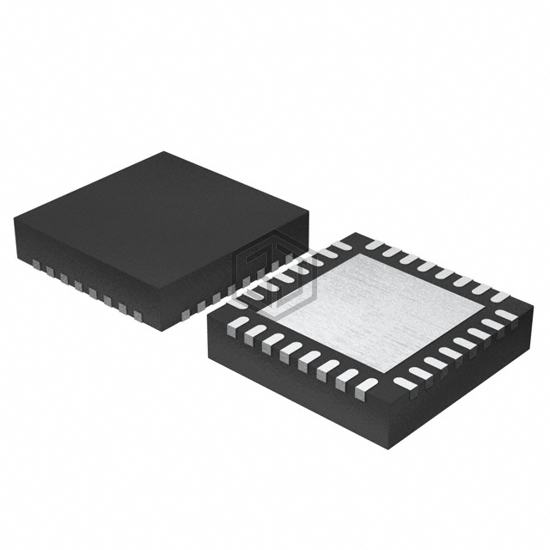

IC REG CTRLR BUCK PMBUS 32QFN
ZL8101ALAF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK PMBUS 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 14V, package / case 32-VFQFN Exposed Pad.
In Stock: 4,678
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14V |
| Frequency - Switching | 200kHz ~ 1.4MHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | I²C, PMBus, SMBus |
| Control Features | Enable, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
ZL8101ALAF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX1714AEEP+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 20QSOP | 100% | View |
| LM5117QPSQ/NOPB | Texas Instruments | IC REG CTRLR BUCK 24WQFN | 98% | View |
| LTC3884IRHE-1#WTRPBF | Analog Devices Inc. | 2X OUT POLYPHBUCK CNTR W/ SUB-MI | 84% | View |
| LTC3884ERHE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 48QFN | 84% | View |
| ISL9444IRZ-T7A | Renesas Electronics America Inc | IC REG CTRLR BUCK 40QFN | 80% | View |
| LTC7852IRHE#PBF | Analog Devices Inc. | 6-PHASE BUCK CONTROLLER DRIVES D | 74% | View |
Submit your RFQ for ZL8101ALAF and get a quote within 24 hours.
