Renesas Electronics America Inc

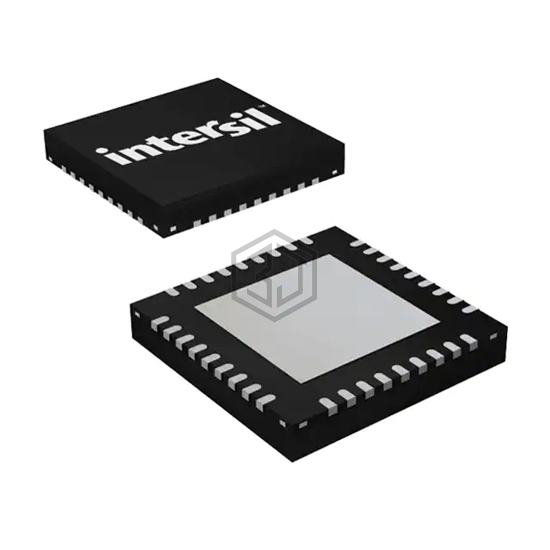

IC REG CTRLR BUCK PMBUS 36QFN
ZL6105ALAF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK PMBUS 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5V, package / case 36-VFQFN Exposed Pad.
In Stock: 9,970
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5V |
| Frequency - Switching | 200kHz ~ 1.4MHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | I²C, PMBus, SMBus |
| Control Features | Current Limit, Enable, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 36-VFQFN Exposed Pad |
| Supplier Device Package | 36-QFN (6x6) |
ZL6105ALAF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM27403SQX/NOPB | Texas Instruments | SYNCHRONOUS BUCK CONTROLLER | 100% | View |
| MAX8578EUB+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 10UMAX | 100% | View |
| LTC3830EGN#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16SSOP | 100% | View |
| MAX1993ETG+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 24TQFN | 95% | View |
| MAX1714BEEE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16QSOP | 95% | View |
| ISL6522IRZ-TK | Renesas Electronics America Inc | IC REG CTRLR BUCK 16QFN | 86% | View |
Submit your RFQ for ZL6105ALAF and get a quote within 24 hours.
