Renesas Electronics America Inc
IC MCU 16BIT 128KB FLASH

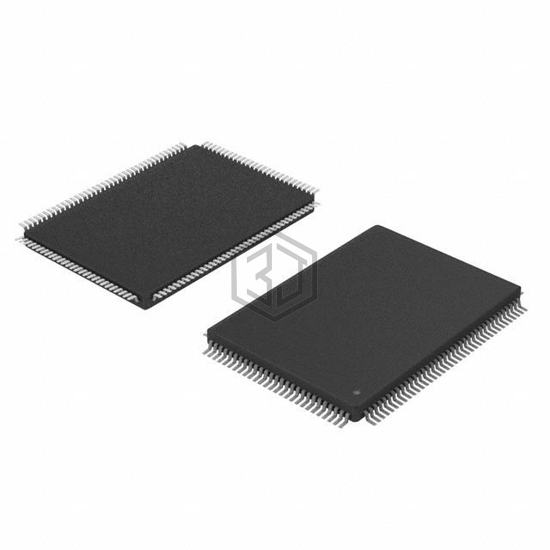

UPD78F1508AGF-GAT-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 128KB FLASH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 128-LQFP.
In Stock: 6,450
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 76 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 7K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 128-LQFP |
| Supplier Device Package | - |
UPD78F1508AGF-GAT-AX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16LF1903-E/SS | Microchip Technology | IC MCU 8BIT 7KB FLASH 28SSOP | 85% | View |
| ATMEGA48A-AU | Microchip Technology | IC MCU 8BIT 4KB FLASH 32TQFP | 84% | View |
| PIC16F916-I/SS | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SSOP | 83% | View |
| Z8F0880SH020EG | Zilog | IC MCU 8BIT 8KB FLASH 20SOIC | 79% | View |
| MC9RS08KB12CSG | NXP USA Inc. | IC MCU 8BIT 12KB FLASH 16SOIC | 78% | View |
| R5F21294JSP#W4 | Renesas Electronics America Inc | IC MCU 16BIT 16KB FLASH 20LSSOP | 72% | View |
Submit your RFQ for UPD78F1508AGF-GAT-AX and get a quote within 24 hours.
