Renesas Electronics America Inc

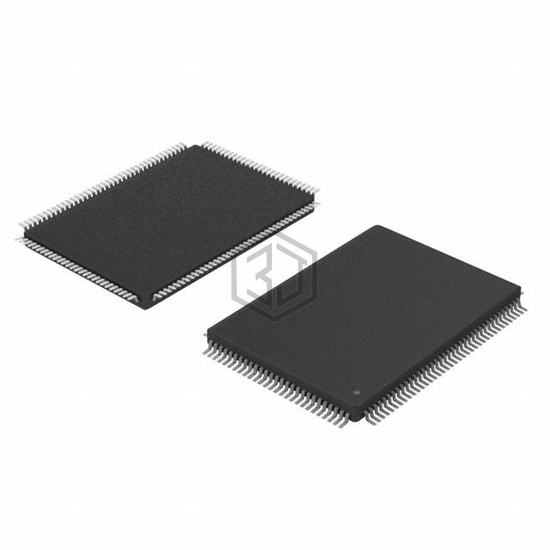

IC MCU 16BIT 96KB FLASH 128LQFP
UPD78F1507AGF-GAT-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 96KB FLASH 128LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 128-LQFP.
In Stock: 5,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 76 |
| Program Memory Size | 96KB (96K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 128-LQFP |
| Supplier Device Package | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATMEGA48PA-AUR | Microchip Technology | IC MCU 8BIT 4KB FLASH 32TQFP | 84% | View |
| ATTINY4313-SUR | Microchip Technology | IC MCU 8BIT 4KB FLASH 20SOIC | 80% | View |
| ATTINY2313A-MU | Microchip Technology | IC MCU 8BIT 2KB FLASH 20QFN | 80% | View |
| ATTINY13A-MUR | Microchip Technology | IC MCU 8BIT 1KB FLASH 20QFN | 78% | View |
| PIC16HV616-E/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 16QFN | 76% | View |
| PIC12F615-E/MF | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8DFN | 76% | View |
Submit your RFQ for UPD78F1507AGF-GAT-AX and get a quote within 24 hours.
