Renesas Electronics America Inc

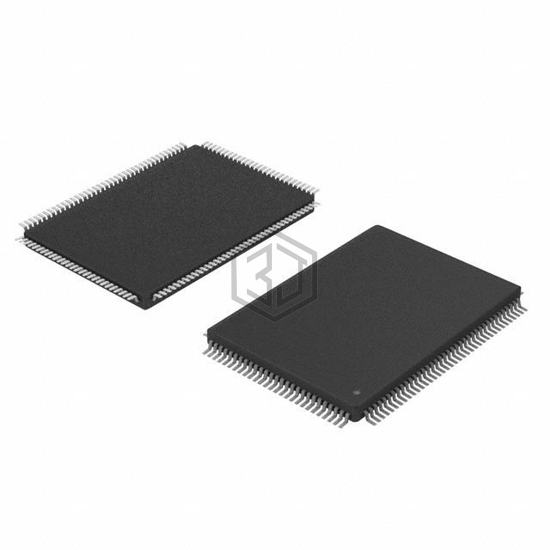

IC MCU 16BIT 64KB FLASH 128LQFP
UPD78F1506AGF-GAT-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 64KB FLASH 128LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 128-LQFP.
In Stock: 7,718
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 76 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 128-LQFP |
| Supplier Device Package | - |
UPD78F1506AGF-GAT-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MSP430F6634IZCAR | Texas Instruments | IC MCU 16BIT 192KB FLSH 113NFBGA | 100% | View |
| R5F212A8SDFA#V2 | Renesas Electronics America Inc | IC MCU 16BIT 64KB FLASH 64LQFP | 93% | View |
| MC9S08PA8AVLDR | NXP USA Inc. | IC MCU 8BIT 8KB FLASH 44LQFP | 84% | View |
| PIC16F677-E/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20QFN | 79% | View |
| Z8F0831QJ020EG | Zilog | IC MCU 8BIT 8KB FLASH 28QFN | 79% | View |
| EZ80F92AZ020EG | Zilog | IC MCU 8BIT 128KB FLASH 100LQFP | 77% | View |
Submit your RFQ for UPD78F1506AGF-GAT-AX and get a quote within 24 hours.
