Renesas Electronics America Inc

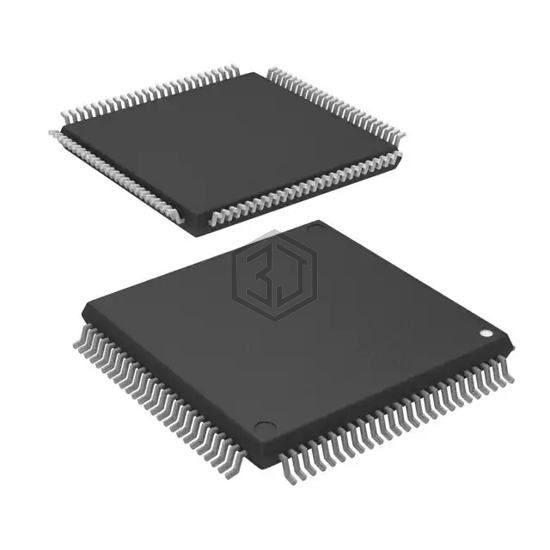

IC MCU 16BIT 128KB FLASH 100LQFP
UPD78F1505AGC-UEU-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 128KB FLASH 100LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 100-LQFP.
In Stock: 1,744
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 60 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 7K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LFQFP (14x14) |
UPD78F1505AGC-UEU-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CY9AF131KAPMC-G-UNE2 | Infineon Technologies | IC MCU 32BIT 64KB FLASH 48LQFP | 93% | View |
| AT89LP51RD2-20JU | Microchip Technology | IC MCU 8BIT 64KB FLASH 44PLCC | 90% | View |
| ATMEGA328PB-AUR | Microchip Technology | IC MCU 8BIT 32KB FLASH 32TQFP | 89% | View |
| ATMEGA4808-AF | Microchip Technology | IC MCU 8BIT 48KB FLASH 32TQFP | 89% | View |
| PIC16LF76T-I/SS | Microchip Technology | IC MCU 8BIT 14KB FLASH 28SSOP | 85% | View |
| ATTINY426-XU | Microchip Technology | IC MCU 8BIT 4KB FLASH 20SSOP | 83% | View |
Submit your RFQ for UPD78F1505AGC-UEU-AX and get a quote within 24 hours.
