Renesas Electronics America Inc

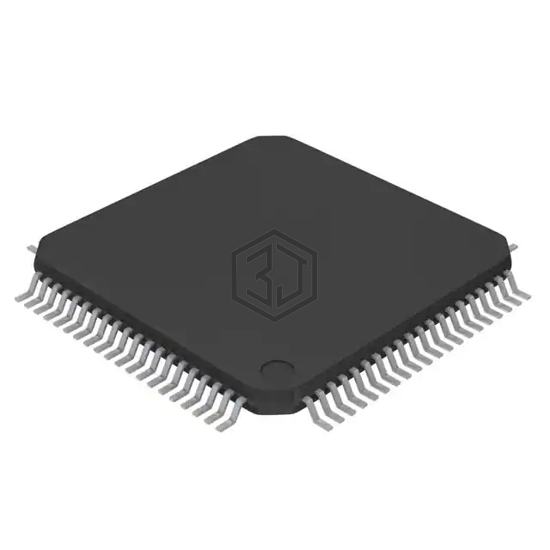

IC MCU 16BIT 64KB FLASH 80LQFP
UPD78F1500AGK-GAK-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 64KB FLASH 80LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 80-LQFP.
In Stock: 3,571
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 46 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | - |
UPD78F1500AGK-GAK-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATMEGA88A-MMH | Microchip Technology | IC MCU 8BIT 8KB FLASH 28VQFN | 90% | View |
| UPD70F3793GC-UEU-AX | Renesas Electronics America Inc | IC MCU 32BIT 512KB FLASH | 90% | View |
| ATMEGA164P-20MQ | Microchip Technology | IC MCU 8BIT 16KB FLASH 44VQFN | 89% | View |
| S9S08RNA16W2MLCR | NXP USA Inc. | IC MCU 8BIT 16KB FLASH 32LQFP | 87% | View |
| R5F212F4DFP#W4 | Renesas Electronics America Inc | IC MCU 16BIT 16KB FLASH 32LQFP | 86% | View |
| PIC12HV615T-I/MF | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8DFN | 76% | View |
Submit your RFQ for UPD78F1500AGK-GAK-AX and get a quote within 24 hours.
