Renesas Electronics America Inc
IC MCU 16BIT 256KB FLASH 144LQFP

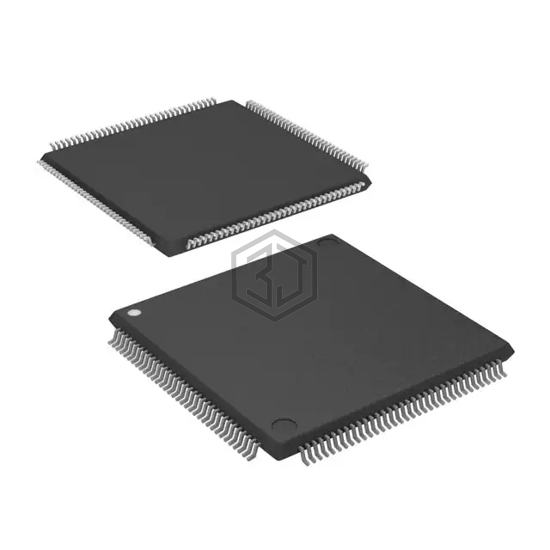

UPD78F1186AGJ-GAE-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 256KB FLASH 144LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 144-LQFP.
In Stock: 5,914
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, EBI/EMI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 127 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 16x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | - |
UPD78F1186AGJ-GAE-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MSP430F6638IZCAR | Texas Instruments | IC MCU 16BIT 256KB FLSH 113NFBGA | 93% | View |
| MSP430F6438IPZ | Texas Instruments | IC MCU 16BIT 256KB FLASH 100LQFP | 93% | View |
| ATTINY84A-CCUR | Microchip Technology | IC MCU 8BIT 8KB FLASH 15UFBGA | 78% | View |
| ATTINY826-SFR | Microchip Technology | IC MCU 8BIT 8KB FLASH 20SOIC | 78% | View |
| PIC16F677-I/SO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SOIC | 76% | View |
| R5F10Y17ASP#10 | Renesas Electronics America Inc | IC MCU 16BIT 4KB FLASH 10LSSOP | 76% | View |
Submit your RFQ for UPD78F1186AGJ-GAE-AX and get a quote within 24 hours.
