Renesas Electronics America Inc

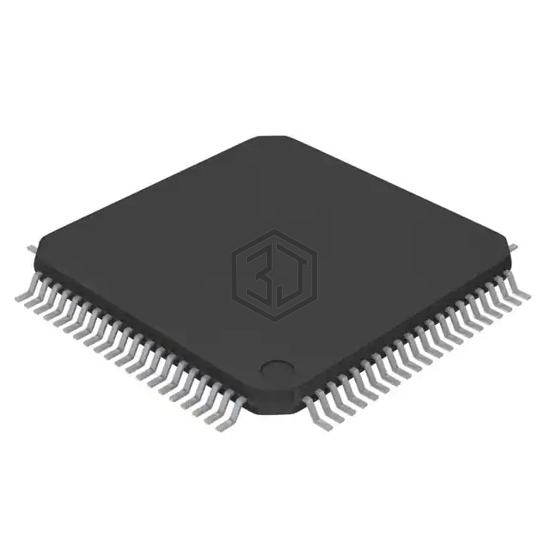

IC MCU 16BIT 128KB FLASH 80LQFP
UPD78F1154AGK-GAK-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 128KB FLASH 80LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 80-LQFP.
In Stock: 113
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 65 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | - |
UPD78F1154AGK-GAK-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKE02Z32VLH2 | NXP USA Inc. | IC MCU 32BIT 32KB FLASH 64LQFP | 93% | View |
| S9S08RN60W1MLH | Freescale Semiconductor | IC MCU 8BIT 60KB FLASH 64LQFP | 92% | View |
| ATMEGA168PB-MUR | Microchip Technology | IC MCU 8BIT 16KB FLASH 32VFQFN | 88% | View |
| PIC16F631T-E/SS | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 20SSOP | 81% | View |
| PIC16F684T-I/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 16QFN | 76% | View |
| MC9S08PB8MTG | NXP USA Inc. | IC MCU 8BIT 8KB FLASH 16TSSOP | 73% | View |
Submit your RFQ for UPD78F1154AGK-GAK-AX and get a quote within 24 hours.
