Renesas Electronics America Inc

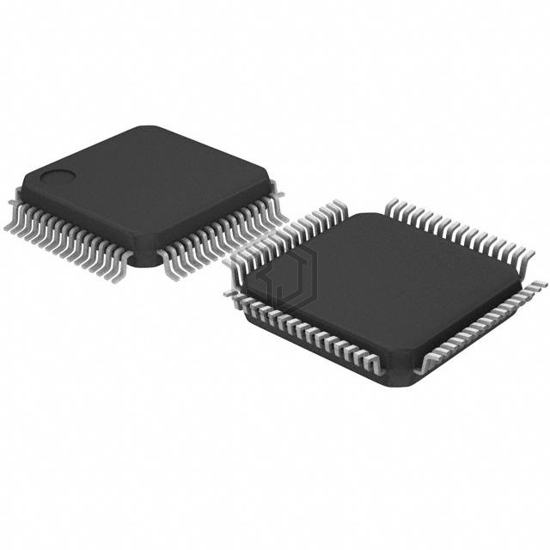

IC MCU 16BIT 64KB FLASH 64LQFP
UPD78F1009GB-GAH-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 64KB FLASH 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 64-LQFP.
In Stock: 4,557
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | - |
UPD78F1009GB-GAH-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATMEGA325A-AN | Microchip Technology | IC MCU 8BIT 32KB FLASH 64TQFP | 99% | View |
| UPD78F0531AGB-GAH-AX | Renesas Electronics America Inc | IC MCU 8BIT 16KB FLASH 64LQFP | 99% | View |
| ATMEGA809-MF | Microchip Technology | IC MCU 8BIT 8KB FLASH 48VQFN | 97% | View |
| MSP430F5335IPZ | Texas Instruments | IC MCU 16BIT 256KB FLASH 100LQFP | 95% | View |
| PIC16LF1517-I/MV | Microchip Technology | IC MCU 8BIT 14KB FLASH 40UQFN | 95% | View |
| PIC12F635-I/MD | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8DFN | 76% | View |
Submit your RFQ for UPD78F1009GB-GAH-AX and get a quote within 24 hours.
