Renesas Electronics America Inc

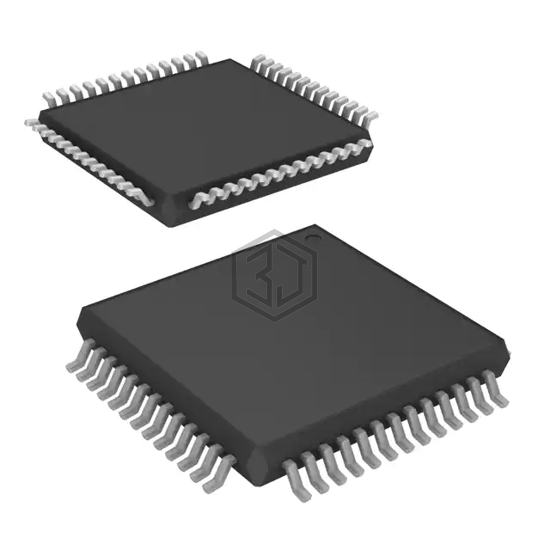

IC MCU 8BIT 32KB FLASH 52LQFP
UPD78F0523AGB-GAG-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 8BIT 32KB FLASH 52LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 52-LQFP.
In Stock: 3,294
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 45 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 52-LQFP |
| Supplier Device Package | - |
UPD78F0523AGB-GAG-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F2LA56ADFP#30 | Renesas Electronics America Inc | IC MCU 16BIT 32KB FLASH 52LQFP | 100% | View |
| AT89LP51RB2-20JU | Microchip Technology | IC MCU 8BIT 24KB FLASH 44PLCC | 94% | View |
| M30281F6HP#U3B | Renesas Electronics America Inc | IC MCU 16BIT 48KB FLASH 64LFQFP | 92% | View |
| SAF-C164CI-8EM | Infineon Technologies | LEGACY 16-BIT MCU | 83% | View |
| PIC12LF1501-I/SN | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8SOIC | 78% | View |
| PIC12F609T-I/MD | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8DFN | 76% | View |
Submit your RFQ for UPD78F0523AGB-GAG-AX and get a quote within 24 hours.
