Renesas Electronics America Inc

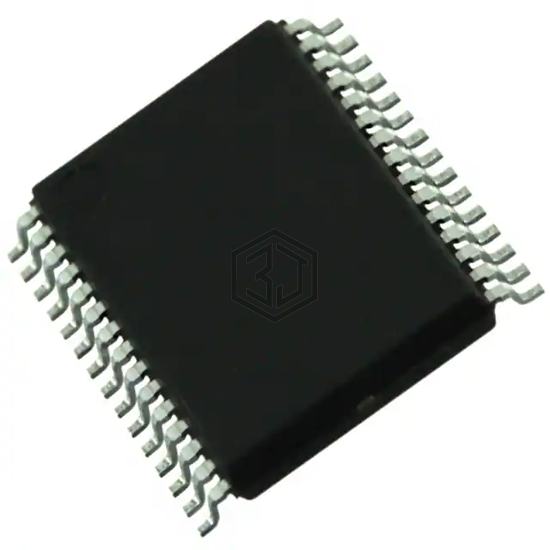

IC MCU 8BIT 16KB FLASH 30LSSOP
UPD78F0501AMC-CAB-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 8BIT 16KB FLASH 30LSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 5.5V, package / case 30-LSSOP (0.240", 6.10mm Width).
In Stock: 6,203
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 768 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 30-LSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 30-LSSOP |
UPD78F0501AMC-CAB-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F21332CDFP#30 | Renesas Electronics America Inc | IC MCU 16BIT 8KB FLASH 32LQFP | 98% | View |
| UPD78F1001GB-GAF-AX | Renesas Electronics America Inc | IC MCU 16BIT 32KB FLASH 44LQFP | 95% | View |
| PIC16LF727-E/PT | Microchip Technology | IC MCU 8BIT 14KB FLASH 44TQFP | 94% | View |
| ATTINY24A-SSU | Microchip Technology | IC MCU 8BIT 2KB FLASH 14SOIC | 91% | View |
| ATMEGA324P-20AUR | Microchip Technology | IC MCU 8BIT 32KB FLASH 44TQFP | 90% | View |
| PIC12F629T-I/MD | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8DFN | 77% | View |
Submit your RFQ for UPD78F0501AMC-CAB-AX and get a quote within 24 hours.
