Renesas Electronics America Inc

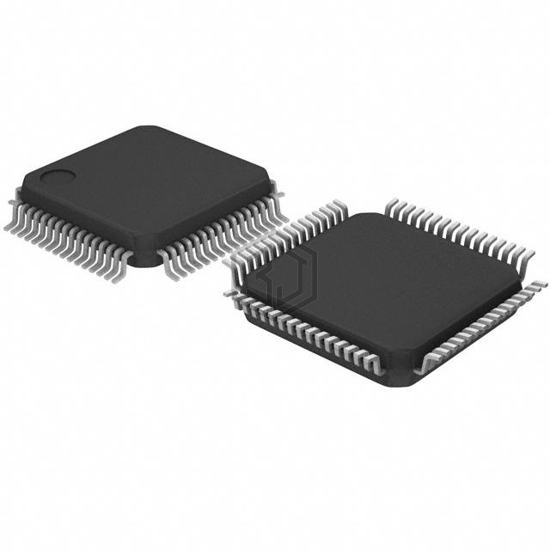

IC MCU 32BIT 128KB FLASH 64LQFP
UPD70F3823GB-GAH-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 128KB FLASH 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.85V ~ 3.6V, package / case 64-LQFP.
In Stock: 1,106
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | V850ES |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, CSI, EBI/EMI, I²C, UART/USART, USB |
| Peripherals | DMA, LVD, PWM, WDT |
| Number of I/O | 45 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.85V ~ 3.6V |
| Data Converters | A/D 10x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | - |
UPD70F3823GB-GAH-AX is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FS32K116LFT0MFMT | NXP USA Inc. | IC MCU 32BIT 128KB FLASH 32HVQFN | 93% | View |
| SPC5604BAMLL4 | NXP USA Inc. | IC MCU 32BIT 512KB FLASH 100LQFP | 92% | View |
| EFM8UB20F32G-B-QFN32R | Silicon Labs | IC MCU 8BIT 32KB FLASH 32QFN | 91% | View |
| ATUC128D3-Z2UT | Microchip Technology | IC MCU 32BIT 128KB FLASH 64QFN | 91% | View |
| ATSAMD20J15A-CN | Microchip Technology | IC MCU 32BIT 32KB FLASH 64UFBGA | 90% | View |
| MKL33Z128VMP4 | NXP USA Inc. | IC MCU 32BIT 128KB FLSH 64MAPBGA | 90% | View |
Submit your RFQ for UPD70F3823GB-GAH-AX and get a quote within 24 hours.
