Renesas Electronics America Inc

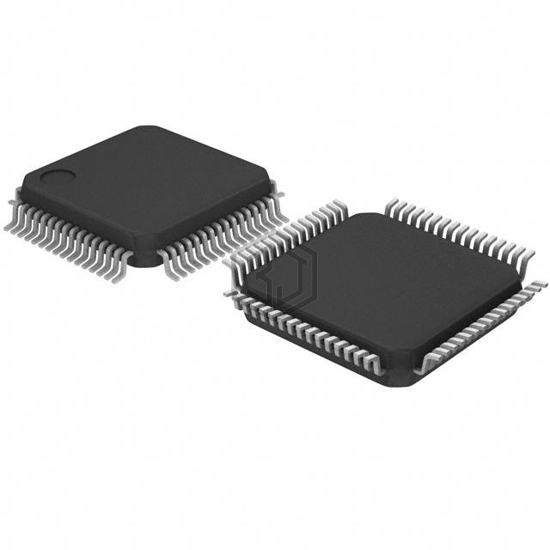

IC MCU 32BIT 32KB FLASH 64LQFP
UPD70F3806GB(R)-GAH-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 32KB FLASH 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.2V ~ 3.6V, package / case 64-LQFP.
In Stock: 5,033
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | V850ES |
| Core Size | 32-Bit Single-Core |
| Speed | 20MHz |
| Connectivity | CSI, EBI/EMI, I²C, UART/USART |
| Peripherals | DMA, LVD, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 10x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | - |
UPD70F3806GB(R)-GAH-AX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC16F1512T-I/SO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 28SOIC | 90% | View |
| PIC16LF73T-I/SS | Microchip Technology | IC MCU 8BIT 7KB FLASH 28SSOP | 87% | View |
| PIC16F874AT-I/L | Microchip Technology | IC MCU 8BIT 7KB FLASH 44PLCC | 86% | View |
| PIC16F685T-I/SS | Microchip Technology | IC MCU 8BIT 7KB FLASH 20SSOP | 85% | View |
| W79E8213ASG | Nuvoton Technology Corporation | IC MCU 8BIT 4KB FLASH 20SOIC | 85% | View |
| PIC16F785-E/SO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SOIC | 84% | View |
Submit your RFQ for UPD70F3806GB(R)-GAH-AX and get a quote within 24 hours.
