Renesas Electronics America Inc

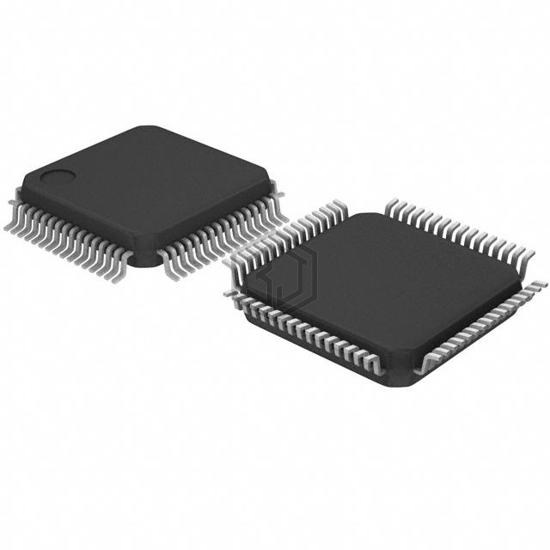

IC MCU 32BIT 16KB FLASH 64LQFP
UPD70F3805GB(R)-GAH-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 16KB FLASH 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.2V ~ 3.6V, package / case 64-LQFP.
In Stock: 4,774
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | V850ES |
| Core Size | 32-Bit Single-Core |
| Speed | 20MHz |
| Connectivity | CSI, EBI/EMI, I²C, UART/USART |
| Peripherals | DMA, LVD, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 10x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | - |
UPD70F3805GB(R)-GAH-AX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPD78F0534GB(A)-GAH-E1-QS-AX | Renesas Electronics Corporation | IC MCU 8BIT 48KB FLASH 64LQFP | 96% | View |
| Z8F4821AN020EG | Zilog | IC MCU 8BIT 48KB FLASH 44QFP | 89% | View |
| PIC16F883T-I/ML | Microchip Technology | IC MCU 8BIT 7KB FLASH 28QFN | 89% | View |
| PIC16LF1518-I/MV | Microchip Technology | IC MCU 8BIT 28KB FLASH 28UQFN | 88% | View |
| PIC16F785-E/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20QFN | 84% | View |
| PIC16F870T-I/SO | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 28SOIC | 80% | View |
Submit your RFQ for UPD70F3805GB(R)-GAH-AX and get a quote within 24 hours.
