Renesas Electronics America Inc

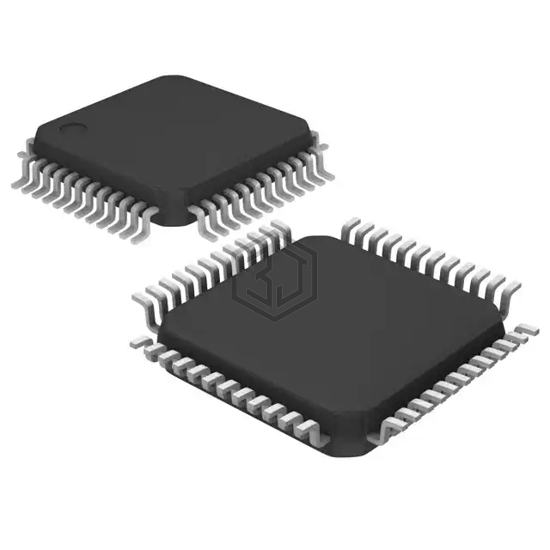

IC MCU 32BIT 64KB FLASH 48LQFP
UPD70F3803GA-GAM-AX is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 64KB FLASH 48LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.2V ~ 3.6V, package / case 48-LQFP.
In Stock: 7,772
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | V850ES |
| Core Size | 32-Bit Single-Core |
| Speed | 20MHz |
| Connectivity | CSI, EBI/EMI, I²C, UART/USART |
| Peripherals | DMA, LVD, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 6x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | - |
UPD70F3803GA-GAM-AX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATMEGA4809-AUR | Microchip Technology | IC MCU 8BIT 48KB FLASH 48TQFP | 95% | View |
| ATMEGA328PB-AU | Microchip Technology | IC MCU 8BIT 32KB FLASH 32TQFP | 94% | View |
| PIC16F677T-E/SS | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20SSOP | 90% | View |
| ATTINY1616-SN | Microchip Technology | IC MCU 8BIT 16KB FLASH 20SOIC | 88% | View |
| PIC16C63A-20E/SS | Microchip Technology | IC MCU 8BIT 7KB OTP 28SSOP | 86% | View |
| MC9S08PL8SCTG | NXP USA Inc. | IC MCU 8BIT 8KB FLASH 16TSSOP | 85% | View |
Submit your RFQ for UPD70F3803GA-GAM-AX and get a quote within 24 hours.
