Renesas Electronics America Inc
IC MCU 32BIT 256KB FLSH 144LFQFP

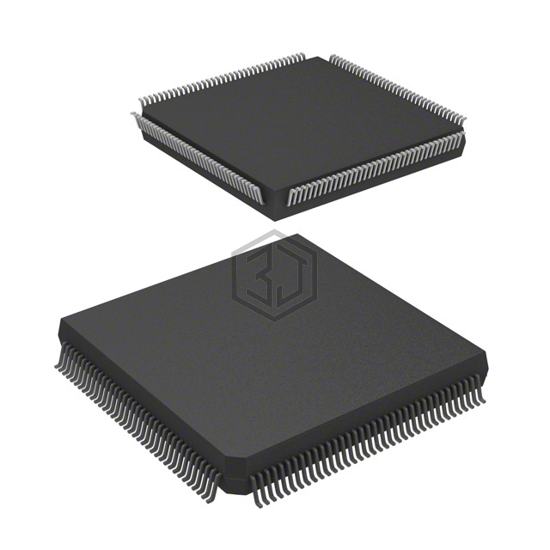

UPD70F3522GJA9-GAE-G is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 256KB FLSH 144LFQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 144-LQFP.
In Stock: 3,086
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | V850E2M |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, SSI, UART/USART, USB |
| Peripherals | DMA, I²S, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 105 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 32x10/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
UPD70F3522GJA9-GAE-G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MB91F524JSCPMC-GSE2 | Infineon Technologies | IC MCU 32BIT 576KB FLASH 120LQFP | 99% | View |
| SPC584B70E5CD00X | STMicroelectronics | IC MCU 32BIT 2MB FLASH 144TQFP | 98% | View |
| FS32K144HAT0VLHT | NXP USA Inc. | IC MCU 32BIT 512KB FLASH 64LQFP | 92% | View |
| R7F7010174AFP-C#AA4 | Renesas Electronics America Inc | IC MCU 32BIT FLASH SMD | 92% | View |
| SPC5644AF0MMG3 | NXP USA Inc. | IC MCU 32BIT 4MB FLASH 208MAPBGA | 86% | View |
| PC56F84550VLF | NXP USA Inc. | IC MCU 32BIT 96KB FLASH 48LQFP | 85% | View |
Submit your RFQ for UPD70F3522GJA9-GAE-G and get a quote within 24 hours.
