Renesas Electronics America Inc

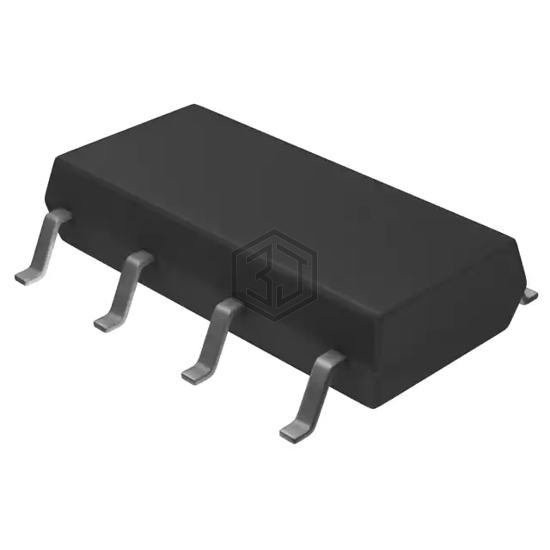

MOSFET P-CH 30V 11A 8SOP
UPA2737GR-E1-AX is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET P-CH 30V 11A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 2,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1750 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Submit your RFQ for UPA2737GR-E1-AX and get a quote within 24 hours.
