Renesas Electronics America Inc
MOSFET N-CH 30V 8A 8VSOF

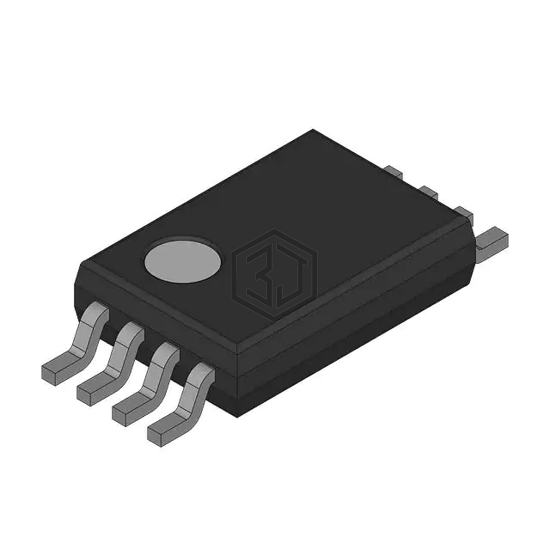

UPA2521T1H-T1-AT is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 30V 8A 8VSOF. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead.
In Stock: 147,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 16.5mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 7.6 nC @ 5 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 780 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSOF |
| Package / Case | 8-SMD, Flat Lead |
Submit your RFQ for UPA2521T1H-T1-AT and get a quote within 24 hours.
