Renesas Electronics America Inc
IPM DRIVER (ACTIVE HIGH OUTPUT),

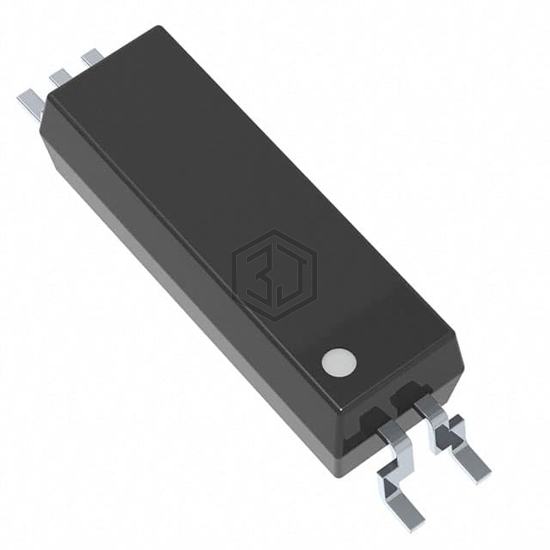

RV1S9209ACCSP-10YC#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. IPM DRIVER (ACTIVE HIGH OUTPUT),. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 20V, package / case 5-SMD, Gull Wing.
In Stock: 8,669
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25 mA |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Rise / Fall Time (Typ) | 25ns, 5ns |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, Gull Wing |
| Supplier Device Package | 5-LSSO |
Submit your RFQ for RV1S9209ACCSP-10YC#SC0 and get a quote within 24 hours.
