Renesas Electronics America Inc
HI-SPEED OPTOCPLR SO-5

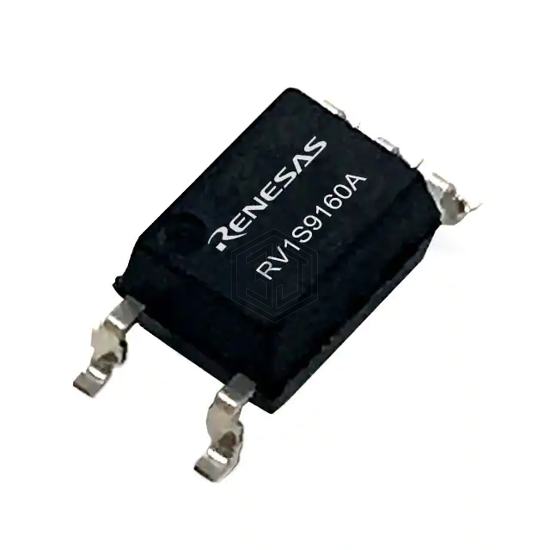

RV1S9160ACCSP-100V#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. HI-SPEED OPTOCPLR SO-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.
In Stock: 2,877
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Input Type | - |
| Output Type | CMOS |
| Current - Output / Channel | 10 mA |
| Data Rate | 15Mbps |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Rise / Fall Time (Typ) | 5ns, 5ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 6mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-SO |
Submit your RFQ for RV1S9160ACCSP-100V#SC0 and get a quote within 24 hours.
