Renesas Electronics America Inc
OPTO COUPLER IN 4PIN SSOP

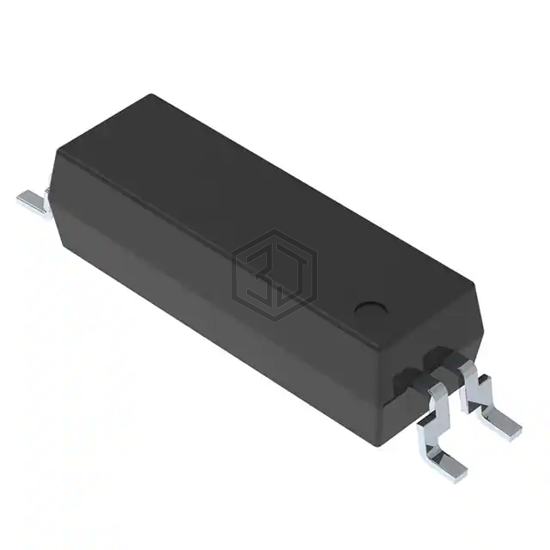

RV1S2285ACCSP-10YV#SC0 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Renesas Electronics America Inc. OPTO COUPLER IN 4PIN SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 115°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SOP (0.295", 7.50mm Width).
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 5µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 30 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -40°C ~ 115°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOP (0.295", 7.50mm Width) |
| Supplier Device Package | 4-LSSOP |
Submit your RFQ for RV1S2285ACCSP-10YV#SC0 and get a quote within 24 hours.
