Renesas Electronics America Inc

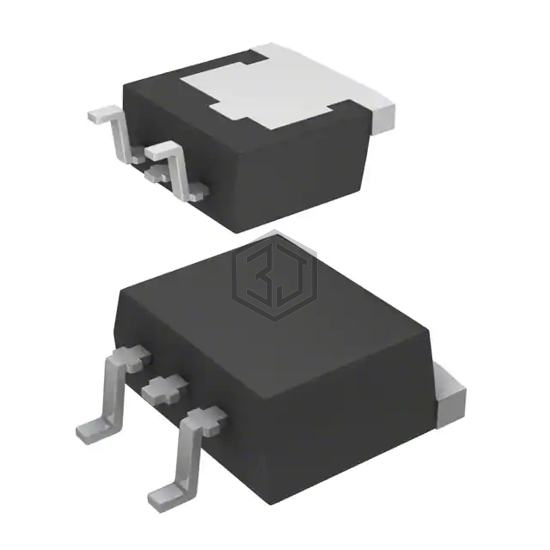

MOSFET N-CH 600V 20A 4LDPAK
RJK60S5DPE-00#J3 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 600V 20A 4LDPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-83.
In Stock: 40,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 178mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 27 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1600 pF @ 25 V |
| FET Feature | Super Junction |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LDPAK |
| Package / Case | SC-83 |
Submit your RFQ for RJK60S5DPE-00#J3 and get a quote within 24 hours.
