Renesas Electronics America Inc
MOSFET N-CH 30V 35A 8WPAK

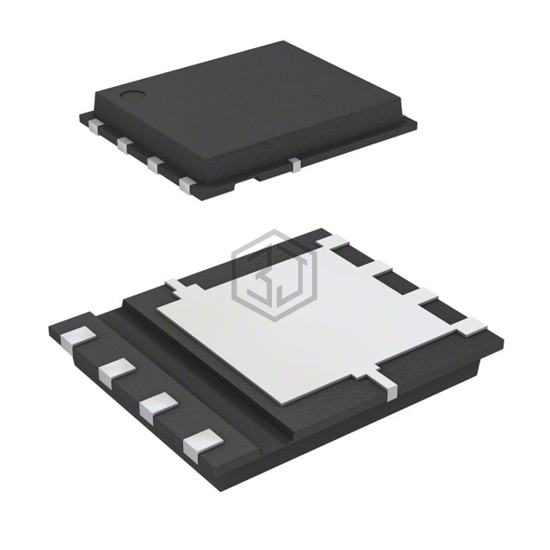

RJK0353DPA-01#J0B is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 30V 35A 8WPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 2,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.2mOhm @ 17.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2180 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 40W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WPAK |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for RJK0353DPA-01#J0B and get a quote within 24 hours.
