Renesas Electronics America Inc
MOSFET N-CH 30V 60A LFPAK

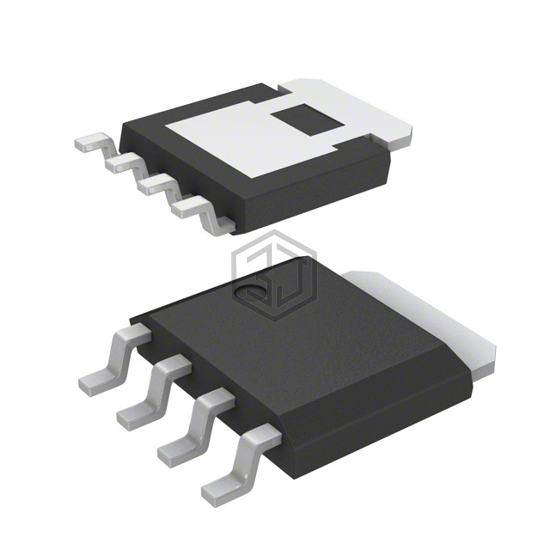

RJK0301DPB-00#J0 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 30V 60A LFPAK. Key specifications: mounting type Surface Mount, package / case SC-100, SOT-669.
In Stock: 51,382
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 2.8mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 4.5 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 5000 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 65W (Tc) |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK |
| Package / Case | SC-100, SOT-669 |
Submit your RFQ for RJK0301DPB-00#J0 and get a quote within 24 hours.
