Renesas Electronics America Inc

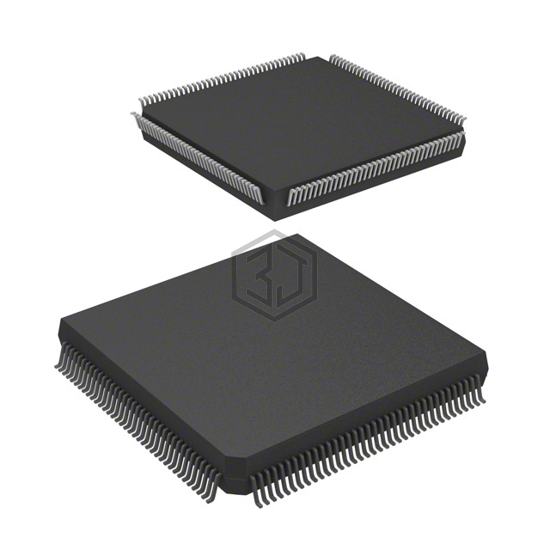

IC MCU 32BIT 512KB FLASH 144LQFP
R5F563TEDDFB#V1 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 512KB FLASH 144LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 144-LQFP.
In Stock: 9,653
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | RX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | EBI/EMI, I²C, LINbus, SCI, SPI |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 81 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 20x10b, 8x12b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LFQFP (20x20) |
R5F563TEDDFB#V1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C8051F122 | Silicon Labs | IC MCU 8BIT 128KB FLASH 100TQFP | 95% | View |
| MK10DN512VMC10R | NXP USA Inc. | IC MCU 32B 512KB FLASH 121MAPBGA | 92% | View |
| MK10DN512VLQ10 | NXP USA Inc. | IC MCU 32BIT 512KB FLASH 144LQFP | 90% | View |
| STM32F412RET6 | STMicroelectronics | IC MCU 32BIT 512KB FLASH 64LQFP | 87% | View |
| STM32F410CBU3TR | STMicroelectronics | IC MCU 32BIT 128KB FLSH 48UFQFPN | 82% | View |
| STM32F423CHU6 | STMicroelectronics | IC MCU 32BIT 1.5MB FLSH 48UFQFPN | 82% | View |
Submit your RFQ for R5F563TEDDFB#V1 and get a quote within 24 hours.
