Renesas Electronics America Inc

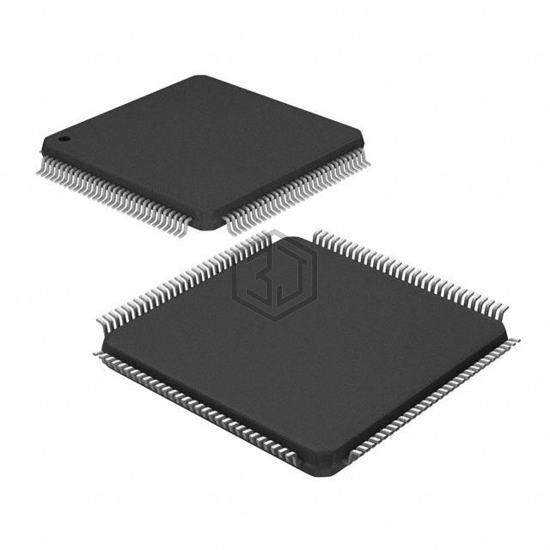

IC MCU 32BIT 512KB FLASH 120LQFP
R5F563TEDDFA#V1 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 512KB FLASH 120LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 120-LQFP.
In Stock: 3,893
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | RX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | EBI/EMI, I²C, LINbus, SCI, SPI |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 72 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b, 8x12b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 120-LQFP |
| Supplier Device Package | 120-LQFP (16x16) |
R5F563TEDDFA#V1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F563TBADFA#V1 | Renesas Electronics America Inc | IC MCU 32BIT 256KB FLASH 120LQFP | 100% | View |
| TMS320F28232PGFA | Texas Instruments | IC MCU 32BIT 128KB FLASH 176LQFP | 91% | View |
| DSPIC33CK128MP505T-I/M4 | Microchip Technology | IC MCU 16BIT 128KB FLASH 48UQFN | 90% | View |
| CY8C6244AZI-S4D82 | Infineon Technologies | PSOC6 | 90% | View |
| CY8C624ABZI-S2D04 | Infineon Technologies | PSOC6 | 89% | View |
| DSPIC33CK256MP202T-I/SS | Microchip Technology | IC MCU 16BIT 256KB FLASH 28SSOP | 82% | View |
Submit your RFQ for R5F563TEDDFA#V1 and get a quote within 24 hours.
