Renesas Electronics America Inc

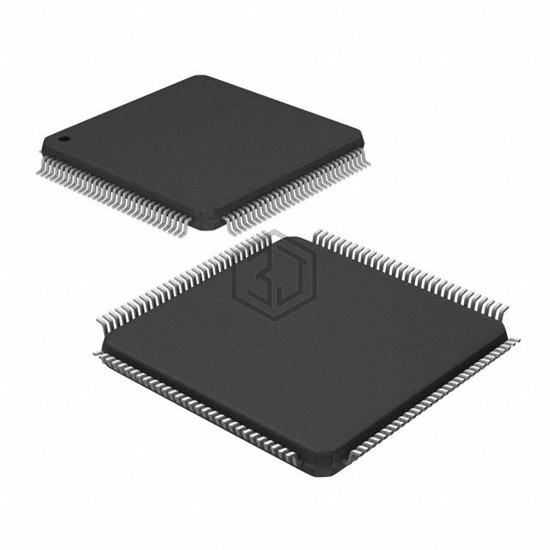

IC MCU 32BIT 256KB FLASH 120LQFP
R5F563TBBDFA#V1 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 256KB FLASH 120LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 120-LQFP.
In Stock: 3,756
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | RX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 72 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 12x10b, 8x12b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 120-LQFP |
| Supplier Device Package | 120-LQFP (16x16) |
R5F563TBBDFA#V1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F5631KDDFP#10 | Renesas Electronics America Inc | IC MCU 32BIT 2MB FLASH 100LFQFP | 99% | View |
| R5F5630ACDFP#V0 | Renesas Electronics America Inc | IC MCU 32BIT 768KB FLASH 100LQFP | 99% | View |
| R5F563NACDFB#10 | Renesas Electronics America Inc | IC MCU 32BIT 768KB FLSH 144LFQFP | 94% | View |
| DSPIC33CK128MP506T-I/PT | Microchip Technology | IC MCU 16BIT 128KB FLASH 64TQFP | 94% | View |
| MK20DX256VMC10 | NXP USA Inc. | IC MCU 32B 256KB FLASH 121MAPBGA | 93% | View |
| MK30DN512VLQ10 | NXP USA Inc. | IC MCU 32BIT 512KB FLASH 144LQFP | 89% | View |
Submit your RFQ for R5F563TBBDFA#V1 and get a quote within 24 hours.
