Renesas Electronics America Inc

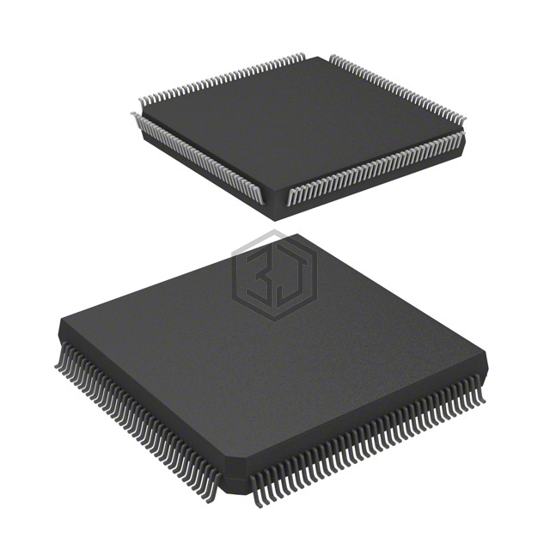

IC MCU 32BIT 2MB FLASH 144LFQFP
R5F563NEDDFB#10 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 2MB FLASH 144LFQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 144-LQFP.
In Stock: 8,171
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | RX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 111 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b, 21x12b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LFQFP (20x20) |
R5F563NEDDFB#10 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F56316DGFB#V0 | Renesas Electronics Corporation | 32BIT MCU RX631 | 100% | View |
| R5F563NDDGFB#V0 | Renesas Electronics Corporation | 32BIT MCU RX63N | 100% | View |
| CYT3BB7CEBQ0AEEGS | Infineon Technologies | IC MCU 32BT 4.0625MB FLSH 144QFP | 99% | View |
| CYT3BB7CEBQ0AEEGST | Infineon Technologies | IC MCU 32BT 4.0625MB FLSH 144QFP | 99% | View |
| CYT4BB7CEBQ1AEEGST | Infineon Technologies | IC MCU 32BIT 4MB FLASH 144LQFP | 99% | View |
| CY8C6245AZI-S3D42 | Infineon Technologies | PSOC6 | 86% | View |
Submit your RFQ for R5F563NEDDFB#10 and get a quote within 24 hours.
