Renesas Electronics America Inc

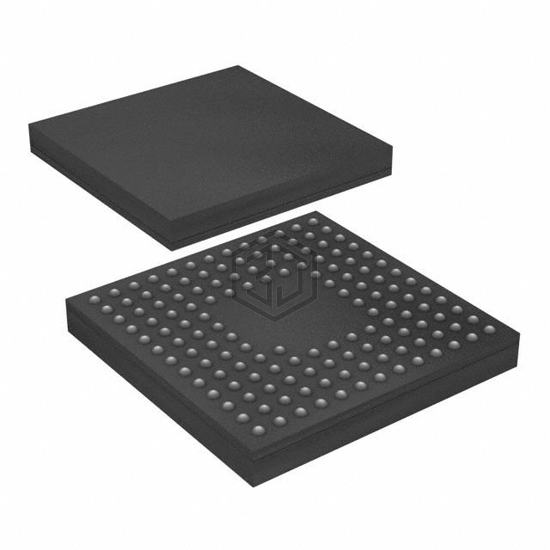

IC MCU 32BIT 1.5MB FLSH 145TFLGA
R5F563NDCDLK#U0 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 32BIT 1.5MB FLSH 145TFLGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 3.6V, package / case 145-TFLGA.
In Stock: 3,149
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | RX |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 111 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b, 21x12b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 145-TFLGA |
| Supplier Device Package | 145-TFLGA (7x7) |
R5F563NDCDLK#U0 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STM32F411VET6 | STMicroelectronics | IC MCU 32BIT 512KB FLASH 100LQFP | 89% | View |
| MKV31F128VLL10 | NXP USA Inc. | IC MCU 32BIT 128KB FLASH 100LQFP | 87% | View |
| MK40DX256ZVMB10 | Freescale Semiconductor | IC MCU 32BIT 256KB FLSH 81MAPBGA | 83% | View |
| DSPIC33CK32MP503-I/M5 | Microchip Technology | IC MCU 16BIT 32KB FLASH 36UQFN | 80% | View |
| MKV30F128VLF10 | NXP USA Inc. | IC MCU 32BIT 128KB FLASH 48LQFP | 78% | View |
| DSPIC33CK64MC102-E/2N | Microchip Technology | IC MCU 16BIT 64KB FLASH 28UQFN | 76% | View |
Submit your RFQ for R5F563NDCDLK#U0 and get a quote within 24 hours.
