Renesas Electronics America Inc

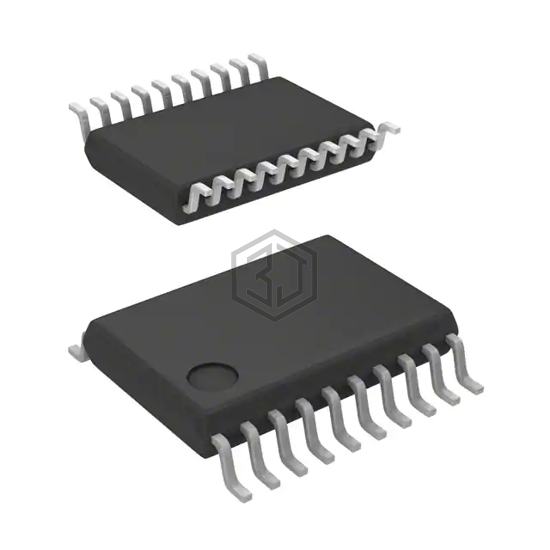

IC MCU 16BIT 32KB FLASH 20LSSOP
R5F21296KSP#ES is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 32KB FLASH 20LSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 20-LSSOP (0.173", 4.40mm Width).
In Stock: 7,184
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LED, POR, Voltage Detect, WDT |
| Number of I/O | 13 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-LSSOP |
R5F21296KSP#ES is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STM8AF6223PDX | STMicroelectronics | IC MCU 8BIT 8KB FLASH 20TSSOP | 97% | View |
| ATTINY1614-SSF | Microchip Technology | IC MCU 8BIT 16KB FLASH 14SOIC | 97% | View |
| PIC16F720-E/ML | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 20QFN | 89% | View |
| ATTINY85-15MZ | Microchip Technology | IC MCU 8BIT 8KB FLASH 20QFN | 88% | View |
| S9S08QD4J2MSC | Freescale Semiconductor | IC MCU 8BIT 4KB FLASH 8SOIC | 82% | View |
| S9S08QD4J2MSCR | Freescale Semiconductor | IC MCU 8BIT 4KB FLASH 8SOIC | 82% | View |
Submit your RFQ for R5F21296KSP#ES and get a quote within 24 hours.
