Renesas Electronics America Inc

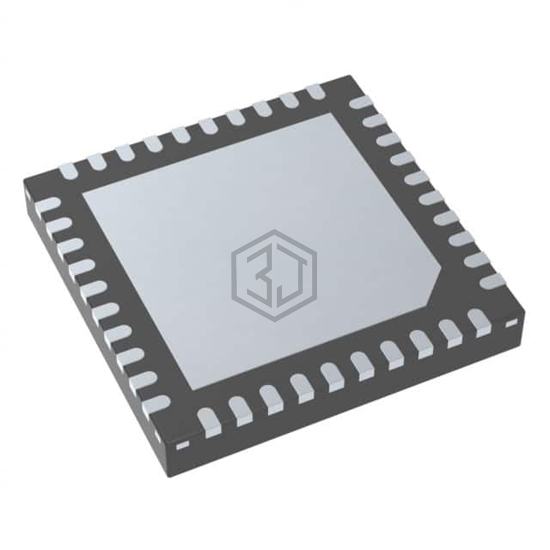

IC MCU 16BIT 48KB FLASH 40HWQFN
R5F100EDGNA#20 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 48KB FLASH 40HWQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.4V ~ 5.5V, package / case 40-WFQFN Exposed Pad.
In Stock: 7,010
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 28 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 9x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-HWQFN (6x6) |
