Renesas Electronics America Inc

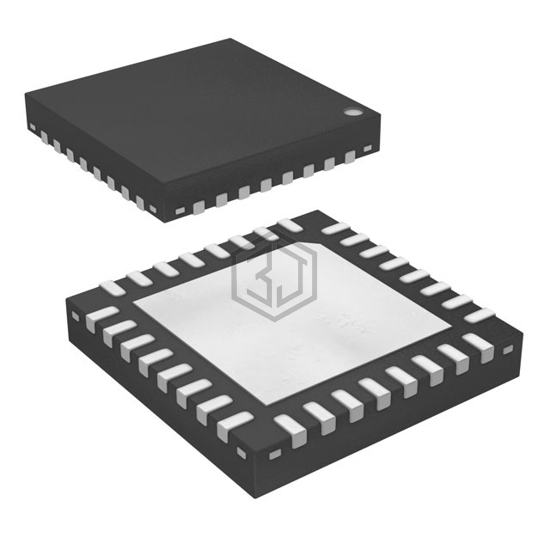

IC MCU 16BIT 48KB FLASH 32HWQFN
R5F100BDGNA#40 is a Embedded - Microcontrollers manufactured by Renesas Electronics America Inc. IC MCU 16BIT 48KB FLASH 32HWQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.4V ~ 5.5V, package / case 32-WFQFN Exposed Pad.
In Stock: 3,068
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 8x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-HWQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R5F109ABCKSP#50 | Renesas Electronics Corporation | RL78/F12 24K 30SSOP LQFP -40 TO | 98% | View |
| R5F10PADCLSP#55 | Renesas Electronics Corporation | 16BIT MCU RL78(AUTO)/F14 48K 105 | 98% | View |
| PIC16LF15356-E/MV | Microchip Technology | IC MCU 8BIT 28KB FLASH 28UQFN | 94% | View |
| R5F10EGAGFB#X0 | Renesas Electronics America Inc | IC MCU 16BIT 16KB FLASH 48LFQFP | 89% | View |
| PIC16F18313-E/SN | Microchip Technology | IC MCU 8BIT 3.5KB FLASH 8SOIC | 81% | View |
| PIC12LF1571-E/SN | Microchip Technology | IC MCU 8BIT 1.75KB FLASH 8SOIC | 78% | View |
Submit your RFQ for R5F100BDGNA#40 and get a quote within 24 hours.
