Renesas Electronics America Inc

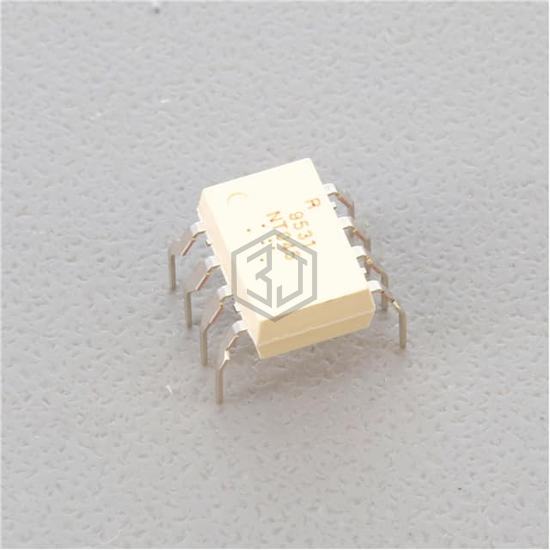

OPTOISO 5KV 1CH GATE DRIVER 8DIP
PS9531L1-AX is a Isolators - Gate Drivers manufactured by Renesas Electronics America Inc. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.56V, package / case 8-DIP (0.400", 10.16mm).
In Stock: 4,716
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 175ns, 175ns |
| Pulse Width Distortion (Max) | 75ns |
| Rise / Fall Time (Typ) | 40ns, 40ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | CSA, SEMKO, UL |
Submit your RFQ for PS9531L1-AX and get a quote within 24 hours.
